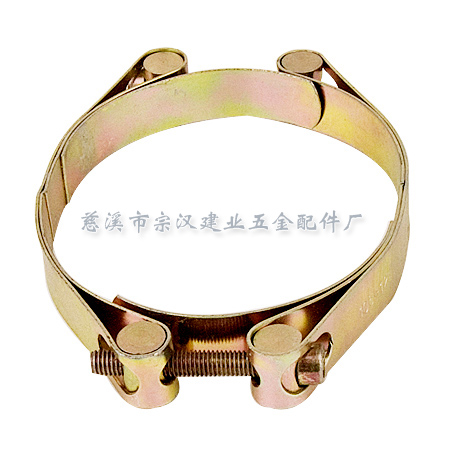

双头强力喉箍
详细说明：
Size Bandwidth thickness of band Thread Screw Break  torque
mm mm mm length(mm) Nm
30-40 20                             1.0 M6 45mm 15 Nm
35-45 20                             1.0 M6 45mm 15 Nm
40-50 20                             1.0 M6 45mm 15 Nm
45-55 20                             1.0 M6 45mm 15 Nm
50-60 20                             1.0 M6 45mm 15 Nm
55-65 20                             1.0 M6 45mm 15 Nm
60-70 20                             1.0 M6 45mm 15 Nm
65-75 20                             1.0 M6 45mm 15 Nm
70-80 20                             1.0 M6 45mm 15 Nm
75-85 20                             1.0 M6 45mm 15 Nm
80-90 24                             1.0 M8 60mm 25 Nm
85-95 24                             1.0 M8 60mm 25 Nm
90-100 24                             1.0 M8 60mm 25 Nm
95-105 24                             1.0 M8 60mm 25 Nm
100-110 24                             1.0 M8 60mm 25 Nm
105-115 24                             1.0 M8 60mm 25 Nm
110-120 24                             1.0 M8 60mm 25 Nm
120-130 24                             1.0 M8 60mm 25 Nm
125-135 24                             1.0 M8 60mm 25 Nm
130-140 24                             1.0 M8 60mm 25 Nm
135-145 24                             1.0 M8 60mm 25 Nm
140-150 24                             1.0 M8 60mm 25 Nm
145-155 24                             1.0 M8 60mm 25 Nm
150-160 24                             1.0 M8 60mm 25 Nm
155-165 24                             1.0 M8 60mm 25 Nm
160-170 24                             1.0 M8 60mm 25 Nm
165-175 24                             1.0 M8 60mm 25 Nm
170-180 24                             1.0 M8 60mm 25 Nm
180-190 24                             1.0 M8 60mm 25 Nm
190-200 24                             1.0 M8 60mm 25 Nm
200-210 24                             1.0 M8 60mm 25 Nm
210-220 24                             1.0 M8 60mm 25 Nm
220-230 24                             1.0 M8 60mm 25 Nm
230-240 24                             1.0 M8 60mm 25 Nm
240-250 24                             1.0 M8 60mm 25 Nm
Material:
W1 - Steel plated
W2 - screw is Steel plated,others all are Stainless steel
W4 - Stainless steel
